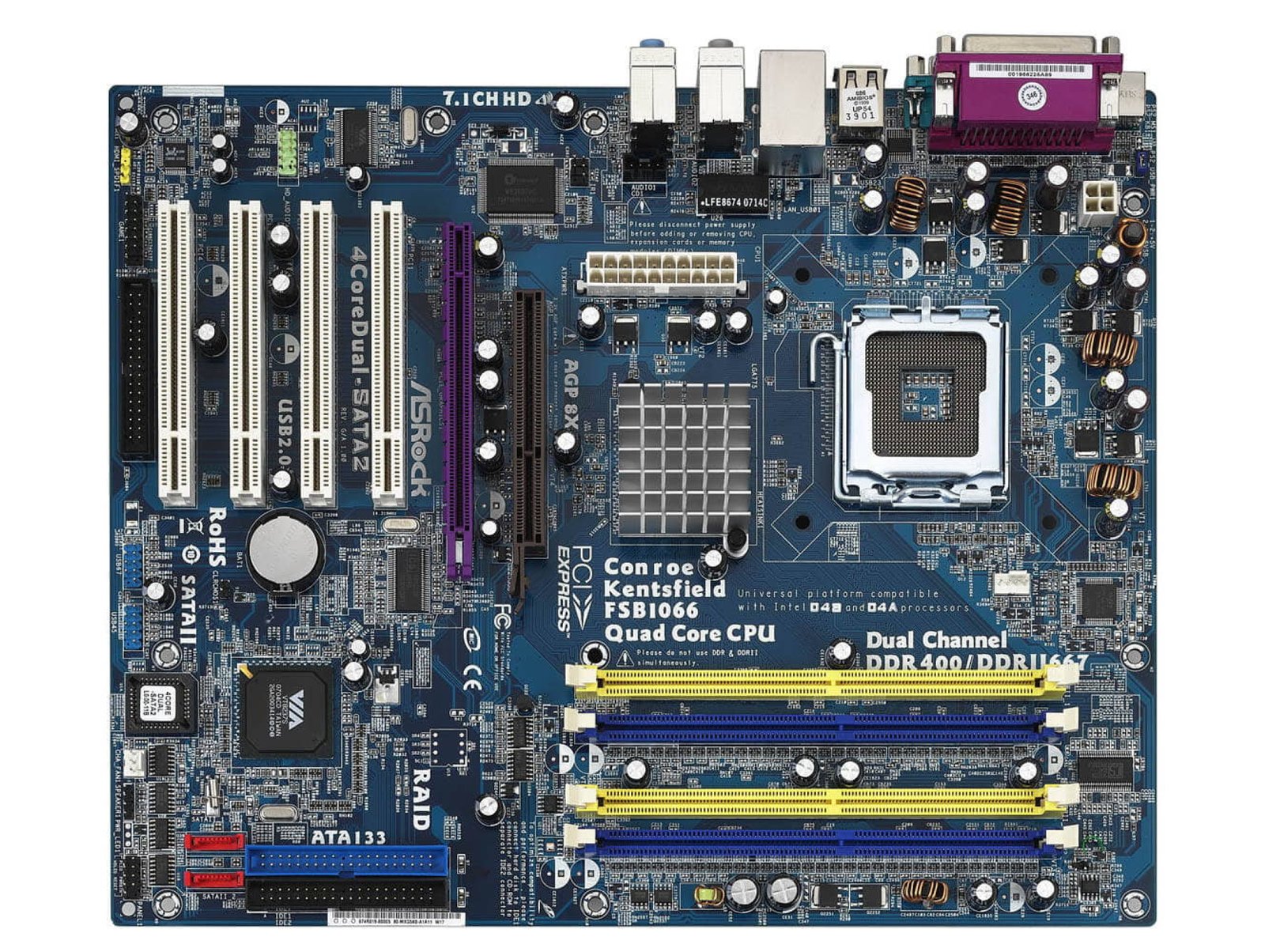

Asrock 4CoreDual-SATA2 Socket LGA 775 Motherboard - Next Day Delivery
2 Weeks lead time
Asrock 4CoreDual-SATA2 Socket LGA 775 Motherboard - Next Day Delivery
Product Verification
To ensure you have the correct part, we kindly ask you to carefully compare the product images with the needed part before ordering.If you have any doubts or need assistance, please call us on 01922 610610 for quick support.
£83.40
Ex Tax: £69.50
| General | |
| CPU | - LGA 775 for Intel® Core™ 2 Quad* / Core™ 2 Extreme* / Core™ 2 Duo / Pentium® XE / Pentium® D / Pentium® Dual Core / Pentium® 4 / Celeron® / Celeron® D, supporting Quad Core Kentsfield processors - FSB 1066/800/533 MHz - Supports Hyper-Threading Technology - Supports Untied Overclocking Technology - Supports EM64T CPU *When you adopt Quad Core CPU, FSB may be reduced 5% |
| Chipset | - Northbridge: VIA® PT880 Pro/PT880 Ultra - Southbridge: VIA® VT8237S |
| Memory | - Dual Channel DDR/DDR2 memory technology* - 2 x DDR2 DIMM slots - Supports DDR2 667/533 non-ECC, un-buffered memory - Max. capacity of system memory: 2GB - 2 x DDR DIMM slots - Supports DDR400/333/266 non-ECC, un-buffered memory - Max. capacity of system memory: 2GB *DDR2 and DDR are supported separately |
| BIOS | - 4Mb AMI BIOS - AMI Legal BIOS - Supports "Plug and Play" - ACPI 1.1 Compliance Wake Up Events - Supports Jumperfree - SMBIOS 2.3.1 Support |
| Audio, Video and Networking | |
| Graphics | - n/a |
| Audio | - 7.1 CH Windows® Vista™ Premium Level HD Audio (ALC888 Audio Codec) |
| LAN | - VIA® PHY VT6103 - Speed: 10/100 Ethernet - Supports Wake-On-LAN - Supports PXE |
| Expansion / Connectivity | |
| Slots | - 1 x PCI Express Graphics slot (@ x4 mode) - 1 x AGP 8X slot - 4 x PCI slots |
| Connector | - 2 x SATA2 3.0 Gb/s connectors, support RAID (RAID 0, RAID 1 and JBOD) and Hot Plug functions - 2 x ATA133 IDE connectors (support 4 x IDE devices) - 1 x Floppy connector - 1 x IR header - 1 x Game header - 1 x HDMI_SPDIF header - CPU/Chassis FAN connector - 20 pin ATX power connector - 4 pin 12V power connector - CD in header - Front panel audio connector - 2 x USB 2.0 headers (support 4 USB 2.0 ports) |
| Rear Panel I/O | HD 8CH I/O - 1 x PS/2 Mouse Port - 1 x PS/2 Keyboard Port - 1 x Serial Port: COM1 - 1 x Parallel Port (ECP/EPP support) - 4 x Ready-to-Use USB 2.0 Ports - 1 x RJ-45 LAN Port - HD Audio Jack: Side Speaker / Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone |
| Other Features / Miscellaneous | |
| Unique Feature | Hybrid Booster: - CPU Frequency Stepless Control - ASRock U-COP - Boot Failure Guard (B.F.G.) |
| Support CD | - Drivers, Utilities, AntiVirus Software (Trial Version) |
| Accessories | - Quick Installation Guide, Support CD, I/O Shield - Floppy/ATA 133 Cables - 1 x SATA Data Cable - 1 x SATA 1 to 1 Power Cable - 1 x HDMI_SPDIF Cable |
| Hardware Monitor | - CPU Temperature Sensing - Chassis Temperature Sensing - CPU Fan Tachometer - Chassis Fan Tachometer - CPU Quiet Fan - Voltage Monitoring: +12V, +5V, +3.3V, Vcore |
| Form Factor | - ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm |
| OS | - Microsoft® Windows® 2000 / XP / XP 64-bit / Vista™ / Vista™ 64-bit compliant |
| Certifications | - FCC, CE, WHQL |
Caution:
Please realize that there is a certain risk involved with overclocking, including adjusting the setting in the BIOS or using the third-party overclocking tools. Overclocking may affect your system stability, or even cause damage to the components and devices of your system. It should be done at your own risk and expense. We are not responsible for possible damage caused by overclocking.
Please realize that there is a certain risk involved with overclocking, including adjusting the setting in the BIOS or using the third-party overclocking tools. Overclocking may affect your system stability, or even cause damage to the components and devices of your system. It should be done at your own risk and expense. We are not responsible for possible damage caused by overclocking.
